Reset button with 2 push buttons  69011
Produkten kan skilja sig från bild

Reset button with 2 push buttons

Every 1 NO contact in a IP65 enclosure
Art.Nr.: 69011
Vikt: 0.11 kg
Tillverknings land:  DE
Tillgänglig
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

R-Button / 42 2NO M12(4)
with M12 connection
4-pole
2 buttons (each 1 NO contact)
Delivery contents:
Flat lens, transparent clear, red, yellow, green, blue
Label plates, O, I, R, ↑,↓
Certificate
Certificate

Technical Data
Contact bounce time max. 10 ms
Switching capacity 15 A (AC 15); 2.2 A (DC 13)
General data
Mounting method with clip on back
Material contact Ag Ni
Temperature range -25...+70 °C (storage temperature -25...+85 °C)
Mech./ elect. life 1 000 000 operations, load-temperature dependent
Protection IP65
Connection M12 (4-pole)
Dimensions H×W×D 29×124×42 mm

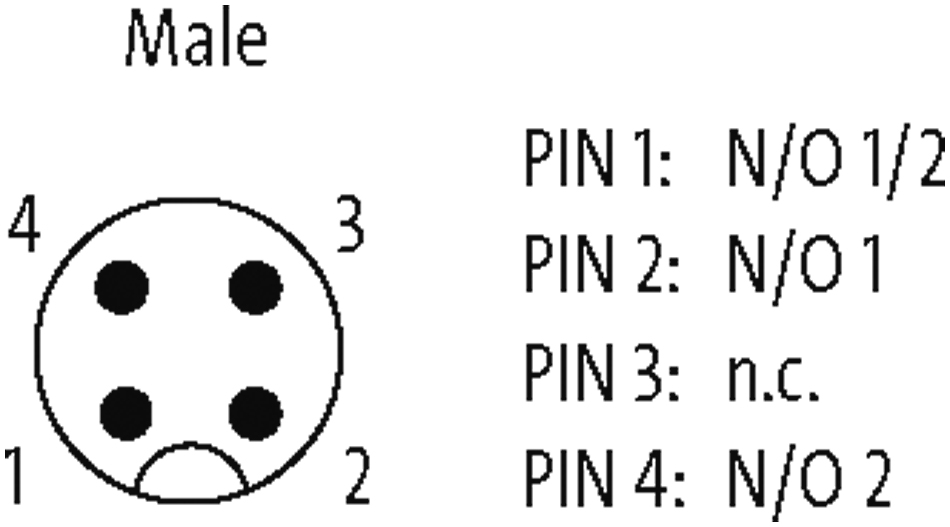

Contact Layout
PIN 1 N/O 1/2
PIN 2 N/O 1
PIN 3 n.c.
PIN 4 N/O 2
Utilization category
AC-15 1.5 A (240 V AC)
DC-13 2 A (24 V DC)

ECLASS-6.0 27371228
ECLASS-6.1 27371228
ECLASS-7.0 27371228
ECLASS-8.0 27371228
ECLASS-9.0 27371228
ECLASS-10.1 27371228
ECLASS-11.1 27371228
ECLASS-12.0 27371228
ETIM-5.0 EC000225
EAN 4048879594318
Förpackningsenhet 1
Kundens tullnummer 85365080


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Construction files: DXF 69011_dxf_x_a.zip
  • Ladda ner Construction files: P8 69011_p8_2_60.zip
  • Ladda ner Construction files: STP 69011_stp_x_b.zip
  • Ladda ner Document: Installation guide 69010_ina_2_11.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA 69011_04-03.22_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 69011_04-03.22_ce_z_b.pdf
