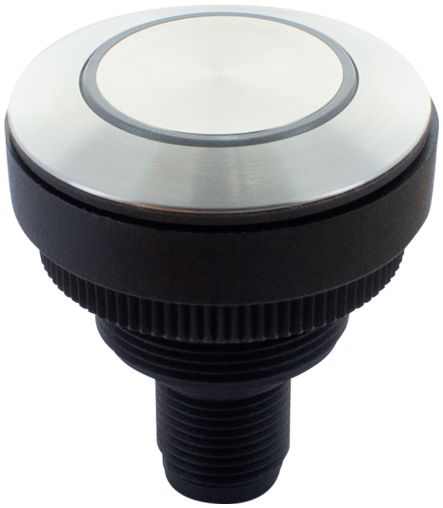

R-Button 30 DS 1NO L M12(4)  69111
Produkten kan skilja sig från bild

R-Button 30 DS 1NO L M12(4)

Illuminiated reset button
Art.Nr.: 69111
Vikt: 0.026 kg
Tillverknings land:  DE
Slut på lager - Kontakta oss för leveransdatum
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

R-Button 30 DS 1NO L M12(4)
Illuminiated reset button
Frontring and cover stainless steel
Mounting hole 30,3 mm
Connection M12 (4-pin)
Certificate
Certificate
Certificate
Certificate

Electrical data
Short-circuit current 1000 A
Short circuit protective device (SCPD) fuse 250 V / 0.1 A / 1.5 kA gG quick
Switching current 0,01...100 mA
Rated voltage UL 60947 ≤ 30 V DC (42,4 V peak)
Switching voltage 0,02...35 V
Rated operating current 0,1 A
Rated operating voltage (DC-13) 35 V
Rated operating voltage (AC-15) 35 V
Operating voltage of the luminous element 20...28 V
Power rating (voltage dependent) 1 W
Rated surge voltage 800 V
Rated insulation voltage 250 V
Electrical protection
Degree of protection front (EN IEC 60529) IP66, IP67, IP69
Degree of protection back (EN IEC 60529) IP66, IP67
Pollution Degree 2
Over voltage category II
Mechanical data
Grid min. 35 mm
Mounting hole 30,3 mm
Mounting depth 36,4 mm
Installation height 3,9 mm
Dimensions H×W×D 34,5 x 40 mm
Shape collar round
Terminal M12, 4-pole, A-coded
Fixing Threaded ring
Color bezel Stainless steel
Color front ring Stainless steel
Color collar black
Color black
Color illuminant white
Type of illuminant LED
Can be illuminated yes
Contact material Gold
Contact function 1 S
Operating travel ≤ 1 mm
Actuating force 5 ... 12 N
Actuating function spring return
Housing Plastic
Mechanical protection
UL Enclosure Type Rating - front type 4X
Mechanical endurance 500000
Mechanical endurance B10 650000
Salt-spray resistance IEC 60068-2-11
Installation height max. ASL ≤ 2000 m
Relative humidity ≤ 93% @ 40 °C
storage temperature -40...85 °C
operating temperature -25...70 °C

ECLASS-6.1 27371228
ECLASS-7.0 27371228
ECLASS-8.0 27371228
ECLASS-9.0 27371228
ECLASS-10.1 27371228
ECLASS-11.1 27371228
ECLASS-12.0 27371228
EAN 4065909019634
Förpackningsenhet 1
Kundens tullnummer 85365080


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Approval: UL Registered CA 69111_E172109-NKCR8_urc_z_a.pdf
  • Ladda ner Approval: UL Registered US 69111_E172109-NKCR2_ur_z_a.pdf
  • Ladda ner Certificate: TÜV  69111_B0318910008-17.09.2025_tuev_z_a.pdf
  • Ladda ner Construction files: P8 69111_p8_2_10.zip
  • Ladda ner Construction files: STP 69111_stp_x_a.zip
  • Ladda ner Document: Product data 69060_pd_x_12.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA 69111_01-12.20_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 69111_01-12.20_ce_z_a.pdf
