Emergency stop with 2 positive opening 69004
Produkten kan skilja sig från bild

Emergency stop with 2 positive opening

contacts in a IP65 enclosure
Art.Nr.: 69004
Vikt: 0.1 kg
Tillverknings land:  DE
Tillgänglig
Find similar Product
Ställ en fråga
 Rekommendera produkten
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

E-Stop / R-B 42 2NC 1NO L M12(8)
with M12 connection
8-pole
Emergency-Stop button
2 NC (positively-opening)
1 button can be lit (1 NO contact)
Delivery contents:
Flat lens, transparent clear, red, yellow, green, blue
Label plates, O, I, R
mounting with clip on the back side
Certificate
Certificate
Certificate

Electrical data
Operating voltage AC/DC LED illumination max. 30 V
Operating current LED illumination 4 mA @24 V DC
Electrical data | Supply
Operating voltage DC (UL-listed) 30 V
Operating voltage DC min. 1 V
Operating voltage DC max. 36 V
Operating current 1,5 A
Device protection
Condition lifetime load-dependent, temperature dependent
Device protection | Electrical
Electrical lifetime 50000 Cycles
Degree of protection (EN IEC 60529) IP65
Device protection | Mechanical
Mechanical endurance 50000 Cycles
Operating life B10d 250000 Cycles
Mechanical data
Bounce time max. 10 ms
Mechanical data | Material data
Material contact AgNi

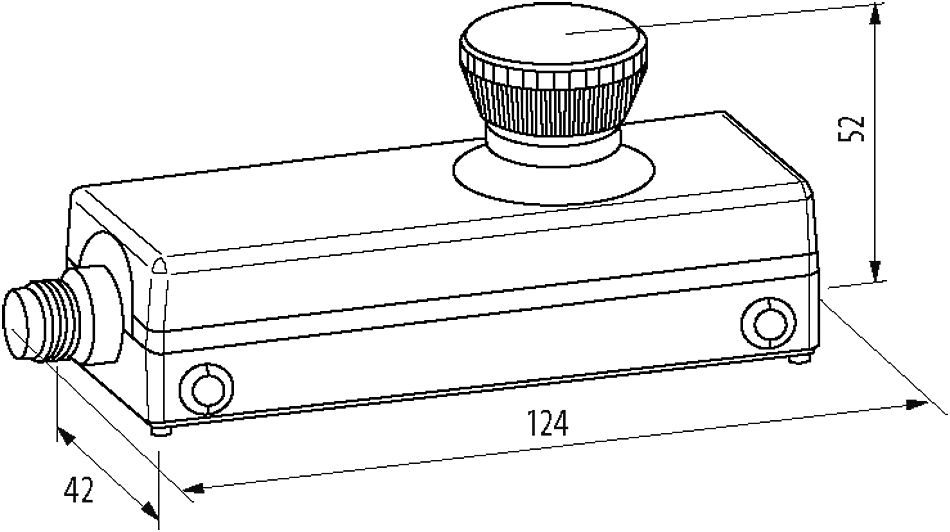

Mechanical data | Mounting data
Height 52 mm
Width 124 mm
Depth 42 mm
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 70 °C
Storage temperature min. -25 °C
Storage temperature max. 85 °C
Technical Data | Reliability
Lambda normally closed contact 20 %

Connection type 1
Family construction form M12
Gender male
Color contact carrier black
Coding A
No. of poles 8

ECLASS-6.0 27371244
ECLASS-6.1 27371244
ECLASS-7.0 27371244
ECLASS-8.0 27371244
ECLASS-9.0 27371244
ECLASS-10.1 27371244
ECLASS-11.1 27371244
ECLASS-12.0 27371244
ETIM-5.0 EC002034
Förpackningsenhet 1
GTIN 4048879663359
Kundens tullnummer 85365080


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Approval: UL Registered US 69004_E479949-NISD2_ur_z_b.pdf
  • Ladda ner Certificate: TÜV  69004_B0318910009-09.02.2025_tuev_z_c.pdf
  • Ladda ner Construction files: DXF 69004_dxf_x_a.zip
  • Ladda ner Construction files: P8 69004_p8_2_50.zip
  • Ladda ner Construction files: STP 69004_stp_x_a.zip
  • Ladda ner Document: Installation guide 69000_ina_2_12.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA 69004_06-03.22_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 69004_06-03.22_ce_z_b.pdf
  • Ladda ner Information: Safety Codes 69000_SYSTEMA_TB9_x_22.zip
