Product discontinued until 31.10.2018, replaced by: 56469
Produkten kan skilja sig från bild

Product discontinued until 31.10.2018, replaced by: 56469

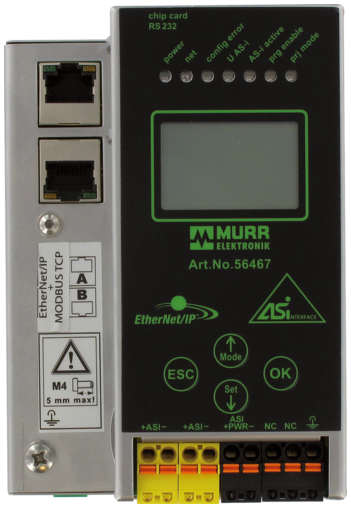

Gateway Ethernet-IP/AS-i, 1 Master, Spec. 3.0, IP20
Art.Nr.: 56467
Vikt: 0.533 kg
Tillgänglig
 Produktjämförelse
Listpris per styck:
Gateway-Singlemaster
via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm²
AS-Interface/EtherNet/IP
Specification 3.0
Current manuals, GSD/type data can be downloaded at: www.murrelektronik.com
Other gateways on request.
Approvals
Approvals
Bus technologies
General data
Standards EN 50295, EN 61000-6-2, EN 61000-6-4
Mounting method DIN-rail mountable (EN 60715)
Temperature range 0...+55 °C (storage temperature -25...+85 °C)
Test isolation voltage min. 500 V
Protection IP20
Dimensions H×W×D 120×85×83 mm
Fieldbus
Transfer rate 10/100 Mbps
Type EtherNet/IP (IEEE 802.3)
AS-Interface
Operating current max. 200 mA (AS-Interface)
Serial interface/diagnostic RJ45/Fieldbus or PS2/RS232
Cycle time 150 µs × (number of slaves + 2)
Bus connection via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm²
No. of slaves max. 62
Specification 3.0
Operating voltage 30 V DC
Connections
Fieldbus RJ45
Kommersiella uppgifter
EAN 4048879495707
eClass 27242208
Förpackningsenhet 1.000
Kundens tullnummer 85176200
Tillverknings land DE

Uppgifter angående artikel:
  • Ladda ner Datablad
  • Ladda ner Approval: UL Listed CA 56467_E201820-NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 56467_E201820-NRAQ_ul_z_a.pdf
  • Ladda ner Configuration Files: EDS 56467_MASI_GWEIP_KF5_11.zip
  • Ladda ner Construction files: DXF 56467_dxf_x_a.zip
  • Ladda ner Construction files: STP 56467_stp_x_a.zip
  • Ladda ner Document: Installation guide 56467_ina_5_12.pdf
  • Ladda ner Document: User manual 56467_hdb_x_11.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Ladda ner Information: EU declaration of conformity 56467_5210-04.16_ce_z_b.pdf
  • Ladda ner Information: MTBF Report 56467_RDF2000(25°C)-BerechnungV1.4_mtbf_p_a.pdf
