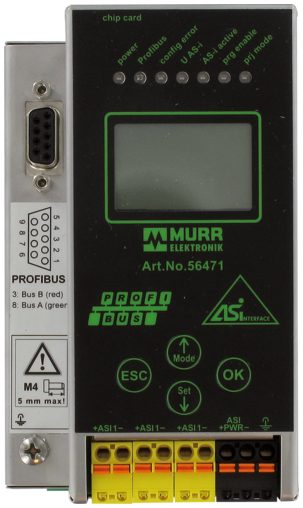

Gateway Profibus-DP/AS-i, 1 Master, P24

Spec. 3.0, Power 24
Art.Nr.: 56471
Vikt: 0.529 kg
Tillverknings land:  DE
Slut på lager - Kontakta oss för leveransdatum
 Produktjämförelse
Listpris per styck:

Beskrivning

AS-Interface/PROFIBUS DP
Gateway-Singlemaster
Power 24V
Specification 3.0
AS-Interface data decoupling integrated
Current manuals, GSD/type data can be downloaded at: www.murrelektronik.com
Other gateways on request.
Approvals
Approvals
Bus technologies

General data
Standards EN 61131-2, EN 62026-2, EN 61000-6-2, EN 61000-6-4
Mounting method DIN-rail mountable (EN 60715)
Temperature range 0...+55 °C (storage temperature -25...+85 °C)
Test isolation voltage min. 500 V
Protection IP20
Dimensions H×W×D 120×75×90 mm
Fieldbus
Transfer rate 9.6...12 000 kbps, automatic detection
Type PROFIBUS DP slave
AS-Interface
Operating current max. 250 mA (AS-Interface)
Serial interface/diagnostic None
Cycle time 150 µs × (number of slaves + 2)
Bus connection via pluggable spring clamp plug-in terminals on the front 0.5...1.5 mm²
No. of slaves max. 62
Specification 3.0
Operating voltage 24 V DC (20...30.6 V DC - PELV)
Functions
- Gateway-Singlemaster
- AS-Interface duplicate address detection
- AS-Interface data decoupling integrated
- AS-Interface EMC detector integrated
Connections
Fieldbus SUB-D9
Article No. 56471

EAN 4048879600415
eClass 27242608
Förpackningsenhet 1
Kundens tullnummer 85176200


Uppgifter angående artikel:
  • Ladda ner Datablad
  • Ladda ner Approval: UL Listed CA 56471_E201820-NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 56471_E201820-NRAQ_ul_z_a.pdf
  • Ladda ner Certificate: ASI  56471_127101_asi_z_b.pdf
  • Ladda ner Configuration Files: GSD 56471_AS-i_Gateway_Profibus_Kfg_x_10.zip
  • Ladda ner Construction files: DXF 56471_dxf_x_a.zip
  • Ladda ner Construction files: STP 56471_stp_x_a.zip
  • Ladda ner Document: Installation guide 56471_ina_5_10.pdf
  • Ladda ner Document: User manual 56465_hdb_x_11.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: EU declaration of conformity 56471_5213-04.16_ce_z_b.pdf
  • Ladda ner Information: MTBF Report 56471_TR_IEC 62380(25°C)-BerechnungV1.4_mtbf_p_a.pdf
