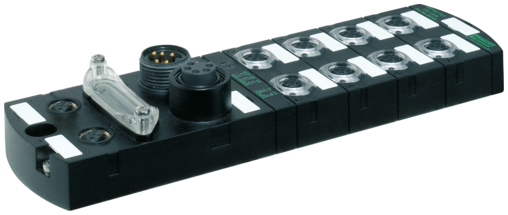

IMPACT67 COMPACT MODULE, PLASTIC 55086
Produkten kan skilja sig från bild

IMPACT67 COMPACT MODULE, PLASTIC

Ethernet/IP, 8 dig. In + 8 dig. Out
Art.Nr.: 55086
Vikt: 0.44 kg
Tillverknings land:  DE
Slut på lager - Kontakta oss för leveransdatum
Find similar Product
Ställ en fråga
 Rekommendera produkten
 Produktjämförelse
Listpris per styck:

Beskrivning

Digital inputs/outputs
DI8 DO8 - 2 A
Ethernet 10/100 Mbit/s; M12, D-coded
7/8", 5-pole, 2× max. 9 A
M12, 5-pole, A-coded
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate
Certificate
Bus technologies

General data
Mounting method 2-hole screw mounting, compatible with I/O modules of MVK model range
Temperature range -25...+55 °C (storage temperature -25...+70 °C)
Protection IP67
Dimensions H×W×D 39×63×225 mm
Output
Switching current per output max. 2 A (short-circuit and overload protected)
Input
Sensor supply US 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Type for 3-wire sensors or mechanical switches, PNP
Connections
Fieldbus Ethernet 10/100 Mbit/s; M12, D-coded
Sensor-system/actuator supply 7/8", 5-pole, 2× max. 9 A
I/O ports M12, 5-pole, A-coded
EtherNet/IP
Addressing DHCP, BOOTP or IP address by rotary switch
Product article number of manufacturer 55086
Diagnostic
Communication status via LED
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Monitoring - under voltage yes
Monitoring - no voltage yes

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
EAN 4048879051941
Förpackningsenhet 1
Kundens tullnummer 85389099


Uppgifter angående artikel:
  • Ladda ner Datablad
  • Ladda ner Approval: CSA CA 55086_080128-0-000_C3211-07_csa_z_b.pdf
  • Ladda ner Approval: CSA US 55086_080128-0-000_C3211-87_csau_z_b.pdf
  • Ladda ner Approval: UL Listed CA 55086_E201820_NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 55086_E201820-NRAQ_ul_z_b.pdf
  • Ladda ner Certificate: Ethernet IP  55086_10817-DOC-072110-odva_eip_z_a.pdf
  • Ladda ner Configuration Files: EDS 55086_IMPACT67_KF5_x_11.zip
  • Ladda ner Construction files: DXF 55091_dxf_d_b.zip
  • Ladda ner Construction files: P8 55086_p8_2_50.zip
  • Ladda ner Construction files: P8 55085_p8_2_50.zip
  • Ladda ner Construction files: STP 55085_stp_x_b.zip
  • Ladda ner Document: Installation guide 55085_ina_6_17.pdf
  • Ladda ner Document: User manual 55368_hdb_x_18.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA 55086_883-04.16_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 55086_883-04.16_ce_z_b.pdf
  • Ladda ner Information: MTTF Report 55086_SN29500(40°C)-Berechnung_mttf_p_a.pdf
