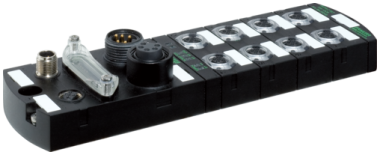

IMPACT67 COMPACT MODULE, PLASTIC

CANopen, 16 dig In
Art.Nr.: 55075
Alternativ produkt:    55076
Vikt: 0.42 kg
Tillverknings land:  DE
Tillgänglig
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

Digital inputs
DI16
CAN 1 Mbit/s; M12, A-coded
7/8", 5-pole, 2× max. 9 A
M12, 5-pole, A-coded
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate
Certificate
Bus technologies

Input
Sensor supply US 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Type for 3-wire sensors or mechanical switches, PNP
General data
Mounting method 2-hole screw mounting, compatible with I/O modules of MVK model range
Temperature range -25...+70 °C (storage temperature -25...+70 °C)
Protection IP67
Dimensions H×W×D 39×63×225 mm
Diagnostic
Communication status via LED
Diagnostic via BUS per module
Diagnostic via LED per module and channel
Monitoring - under voltage yes
Monitoring - no voltage yes
CANopen
Addressing Rotary switch 1...99
Connections
Fieldbus CAN 1 Mbit/s; M12, A-coded
Sensor-system/actuator supply 7/8", 5-pole, 2× max. 9 A
I/O ports M12, 5-pole, A-coded

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
EAN 4048879052030
Förpackningsenhet 1
Kundens tullnummer 85389099


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Approval: CSA CA 55075_080128-0-000_C3211-07_csa_z_c.pdf
  • Ladda ner Approval: CSA US 55075_080128-0-000_C3211-87_csau_z_c.pdf
  • Ladda ner Approval: UL Listed CA 55075_E201820_NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 55075_E201820-NRAQ_ul_z_b.pdf
  • Ladda ner Certificate: CANopen  55075_0000004f-cia201001-301V402-20-0112-Jan10_can_z_a.pdf
  • Ladda ner Configuration Files: EDS 55075_Impact67_KF1_x_11.zip
  • Ladda ner Construction files: DXF 55071_dxf_x_a.zip
  • Ladda ner Construction files: P8 55075_p8_2_50.zip
  • Ladda ner Construction files: STP 55071_stp_x_a.zip
  • Ladda ner Document: Installation guide 55075_ina_6_13.pdf
  • Ladda ner Document: User manual 55365_hdb_x_18.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA 55075_874-04.16_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 55075_874-04.16_ce_z_b.pdf
  • Ladda ner Information: MTTF Report 55075_SN29500(40°C)-Berechnung_mttf_p_a.pdf
