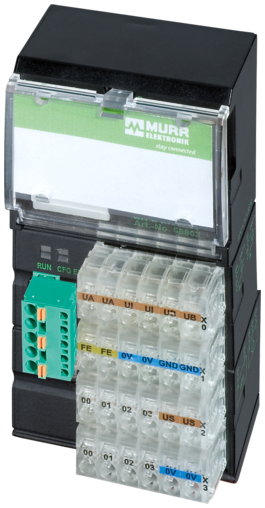

IMPACT20 DEVICENET, DIGITAL OUTPUT MODULE  56910
Produkten kan skilja sig från bild

IMPACT20 DEVICENET, DIGITAL OUTPUT MODULE

16 digital outputs
Art.Nr.: 56910
Vikt: 0.19 kg
Tillverknings land:  DE
Inte tillgänglig
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

Digital outputs
DO16 - 0.5 A
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Bus technologies

Output
Total current max. 8 A
Switching current per output max. 0.5 A (short-circuit and overload protected)
General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range 0...+55 °C (storage temperature -20...+70 °C)
Protection IP20
Dimensions H×W×D 117×56×47 mm
Module supply
Operating voltage 24 V DC (EN 61131-2)
Diagnostic
Communication status via LED
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes
Connections
Fieldbus DN 125 kbit/s; 250 kbit/s; 500 kbit/s; 5× spring clamp terminals
Sensor-system/actuator supply 6× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)
I/O ports 18× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A)

ECLASS-6.0 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ETIM-5.0 EC001599
EAN 4048879048026
Förpackningsenhet 1
Kundens tullnummer 85389099


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Approval: UL Listed CA 56910_E201820_NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 56910_E201820-NRAQ_ul_z_b.pdf
  • Ladda ner Certificate: DeviceNet  56910_10873-DOC-110810-odva_dn_z_a.pdf
  • Ladda ner Configuration Files: EDS 56908_Impact20_KF3_x_11.zip
  • Ladda ner Configuration Files: GSD EDS_Impact20_DN_V1_1_.0.zip
  • Ladda ner Construction files: DXF 56910_dxf_x_a.zip
  • Ladda ner Construction files: P8 56910_p8_2_50.zip
  • Ladda ner Construction files: P8 56908_p8_2_50.zip
  • Ladda ner Construction files: STP 56910_stp_x_a.zip
  • Ladda ner Document: Installation guide 56909_ina_6_11.pdf
  • Ladda ner Document: User manual 56933_hdb_x_10.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 56910_1007-04.16_ce_z_b.pdf
  • Ladda ner Information: MTTF Report 56910_SN29500 (40°C)-BerechnungV1.3_mttf_p_a.pdf
