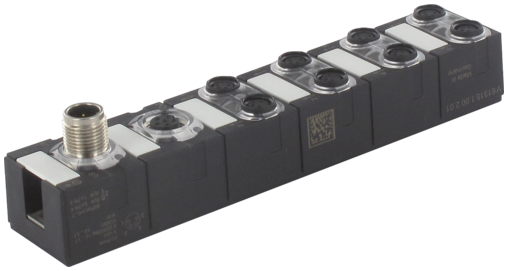

CUBE67 I/O EXTENSION MODULE, 16 multifunction channels  56625
Produkten kan skilja sig från bild

CUBE67 I/O EXTENSION MODULE, 16 multifunction channels

Cube67 DIO16 E 8xM8 4-pole
Art.Nr.: 56625
Vikt: 0.173 kg
Tillverknings land:  CZ
Tillgänglig
 Produktjämförelse
Listpris per styck:

Beskrivning

Expansion module
DIO16 - 0.5 A (E) - 8× M8
4-pole
short-circuit and overload protected
Digital inputs/outputs (multifunctional)
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificates as JSON - filtered

General data
Mounting method 2-hole screw mounting
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection IP67
Dimensions H×W×D 151×30×34.5 mm
Output
Lamp load 10 W
Actuator supply UA 24 V DC (EN 61131-2), via system connection (max. 4 A)
Switching current per output max. 0.5 A (short-circuit and overload protected)
Input
Sensor supply US 24 V DC (EN 61131-2), max. 200 mA (M8 female), short-circuit and overload protected
Type for 3-wire sensors or mechanical switches, PNP
Input filter 1 ms
Internal communication
LED display US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
Current consumption max. 30 mA
Parameterization
PIN 4 Input/Output
PIN 2 Input/Output/Diagnostic
Connections
Fieldbus via internal system connection
Sensor-system/actuator supply via internal system connection (max. 2× 4 A)
I/O ports M8 (female) 4-pole, A-coded
Article No. 56625
Diagnostic
Communication status via LED
Diagnostic via LED per module and channel
Diagnostic via BUS per module and channel
Actuator warning per channel via LED and BUS
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes

EAN 4048879579605
eClass 27242604
Förpackningsenhet 1
Kundens tullnummer 85389099

System cableVisa alla
Sensor-actuator cableVisa alla


Uppgifter angående artikel:
  • Ladda ner Datablad
  • Ladda ner Approval: UL Listed CA 56625_E201820-NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 56625_E201820-NRAQ_ul_z_a.pdf
  • Ladda ner Certificate: CB  56625_DK-61527-UL_cb_z_a.pdf
  • Ladda ner Construction files: DXF 56625_dxf_x_a.zip
  • Ladda ner Construction files: P8 56625_p8_2_50.zip
  • Ladda ner Construction files: STP 56625_stp_x_b.zip
  • Ladda ner Document: Installation guide 56625_ina_x_11.zip
  • Ladda ner Document: User manual 56975_hdb_x_12.zip
  • Ladda ner Document: User manual 56970_hdb_x_25.zip
  • Ladda ner Document: User manual 56971_hdb_x_35.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 17-10.21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Ladda ner Information: Certificate of conformity UKCA 56625_04-10.16_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 56625_04-10.16_ce_z_a.pdf
  • Ladda ner Information: MTTF Report 56625_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
