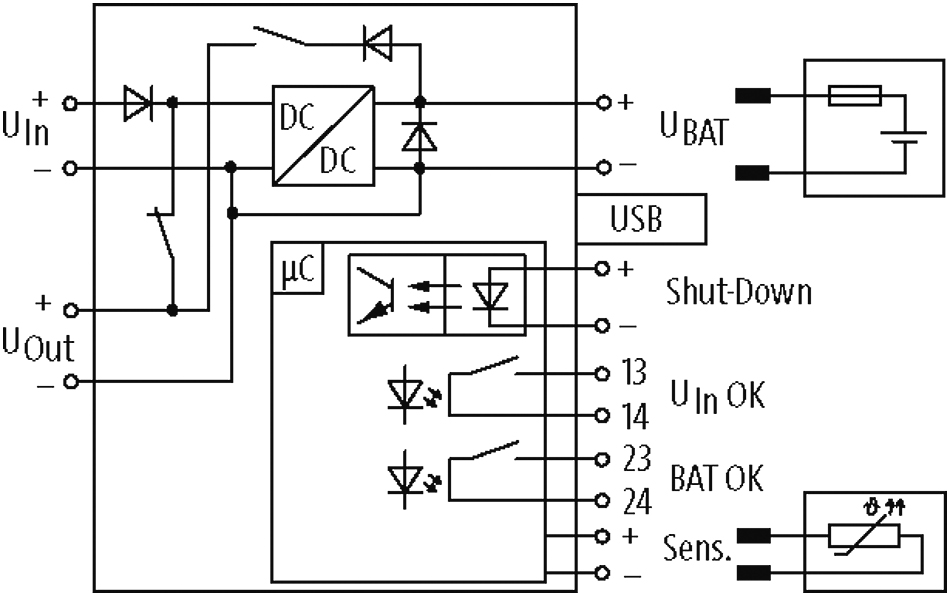

INPUT: 24 V DC (SELV/PELV)
OUTPUT: max. 20 A
Approvals
Technical Data
Sensor type KTY 81-210 (Art.No. 89600)
Battery type Lead battery (max. 40 Ah, sealed)
General data
Mounting method DIN-rail mountable TH35-7.5/TH35-15 (EN 60715)
Temperature range -25...+45 °C
Connection Push-In spring clamp terminals, Mini-USB
Dimensions H×W×D 123×65×143 mm
Output
Output voltage 27.7...19.2 V DC
Output current max. 20 A
Input
Input voltage 21.6...30 V DC (buffer operation)
Loading current 2 A
Input current max. 23 A
Control inputs
Input voltage shutdown (SH) 24 V DC (6...45 V DC), potential free
Control outputs
Input voltage (Uin OK) min. 5 V DC, 1 mA; max. 30 V DC, 100 mA
Battery (BAT OK) min. 5 V DC, 1 mA; max. 30 V DC, 100 mA
Kommersiella uppgifter
EAN 4048879694339
eClass 27049002
Förpackningsenhet 1.000
Kundens tullnummer 85371091
Tillverknings land DE

Uppgifter angående artikel:
  • Ladda ner Datablad
  • Ladda ner Approval: UL Listed CA 85414_E200364-NMTR7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 85414_E200364-NMTR_ul_z_a.pdf
  • Ladda ner Construction files: DXF 85414_dxf_x_a.7z
  • Ladda ner Construction files: P8 85414_p8_2_60.zip
  • Ladda ner Construction files: STP 85414_stp_x_a.7z
  • Ladda ner Document: Installation guide 85414_ina_x_14.zip
  • Ladda ner Document: User manual 85467_hdb_x_14.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 15-12.20_(1) China RoHS 2 e_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 14-11.20_(5) RoHS&REACh no exception_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA 85414_02-03.22_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 85414_02-03.22_ce_z_b.pdf
  • Ladda ner Information: MTBF Report 85414_SN29500(40°C)-Berechnung_mtbf_p_a.pdf
  • Ladda ner Software: Configurator 85414_MB_Cap_Ultra_Control_Setup_TB6_x_18.zip
