Xenterra 16TX unmanaged Switch 16 Port 100Mbit 58904
Produkten kan skilja sig från bild

Xenterra 16TX unmanaged Switch 16 Port 100Mbit

Art.Nr.: 58904
Vikt: 0.405 kg
Tillverknings land:  DE
Slut på lager - Kontakta oss för leveransdatum
Find similar Product
Ställ en fråga
 Rekommendera produkten
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

16 port unmanaged switch
DIN-rail mountable TH35 (EN 60715)
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Certificate

Technical Data
Operating voltage 8...28 V AC/9...36 V DC
Transfer rate 10/100 Mbit/s full duplex
Operating modes Autocrossing Autonegotiation
General data
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -40...+70 °C (storage temperature -40...+85 °C)
Housing Metal black
Protection IP20

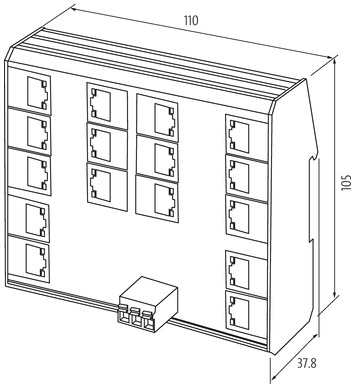

Dimensions H×W×D 105×110×37.8 mm
Diagnostic
Communication status via LED
Monitoring - no voltage yes
Switch Management
Protocols no
Port Mirroring no
VLAN (QoS) IEEE 802.p yes
Alarm contact no
Remote maintenance no
Webserver no
Switch Form Unmanaged Switch
Connections
Fieldbus 16× RJ45
Supply Push-In spring clamp terminals, 0.2...2.5 mm² (0.25...1.5 mm²)

ECLASS-6.0 19170106
ECLASS-6.1 19170106
ECLASS-7.0 19170106
ECLASS-8.0 19170106
ECLASS-9.0 19170402
ECLASS-10.1 19170402
ECLASS-11.1 19170402
ECLASS-12.0 19170402
ETIM-5.0 EC000734
EAN 4048879830416
Förpackningsenhet 1
Kundens tullnummer 85176200


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Approval: UL Listed CA 58904_E201820-NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 58904_E201820-NRAQ_ul_z_a.pdf
  • Ladda ner Construction files: DXF 58904_dxf_x_b.zip
  • Ladda ner Construction files: P8 58904_p8_2_10.zip
  • Ladda ner Construction files: STP 58904_stp_x_b.zip
  • Ladda ner Document: Installation guide 58900_ina_x_12.zip
  • Ladda ner Document: Product data 58904_pd_x_13.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Ladda ner Information: Certificate of conformity UKCA 58904_10-03.22_uk_z_b.pdf
  • Ladda ner Information: EU declaration of conformity 58904_10-03.22_ce_z_b.pdf
  • Ladda ner Information: MTBF Report 58904_SN29500(70°C)-Berechnung_mtbf_p_a.pdf
