Xelity PROFINET Managed Switch 8x 10/100BT + 2x 10/100/1000BT IP67 M12L  58853
Produkten kan skilja sig från bild

Xelity PROFINET Managed Switch 8x 10/100BT + 2x 10/100/1000BT IP67 M12L

5P
Art.Nr.: 58853
Vikt: 0.91 kg
Tillverknings land:  DE
Tillgänglig
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning



8 ports D-coded transfer rate 100 Mbit/s
PROFINET - Managed Switch

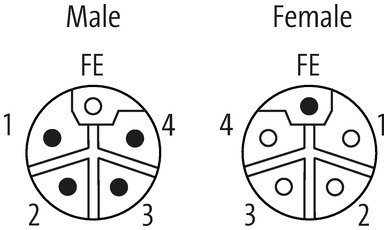

M12 Power, 5-pole, L-coded
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Certificate
Bus technologies

Technical Data
Operating voltage 9...36 V
Transfer rate 10/100/1000 Mbit/s full duplex
Operating modes Autocrossing Autonegotiation
General data
Mounting method 2-hole screw mounting
Temperature range -25...+70 °C, ...+70 °C derating (storage temperature -40...+85 °C)
Housing Metal
Protection IP67
Dimensions H×W×D 37×63×225 mm
Diagnostic
Communication status via LED, LLDP
Monitoring - no voltage yes
Switch Management
Protocols DHCP, SNMP (v1, v2c, v3), RSTP, STP, LLDP, NTP, RMON, SSH (CLI) Syslog
NAT yes
Port Mirroring yes
VLAN (QoS) IEEE 802.p yes
Alarm contact no
Remote maintenance Open VPN
Webserver HTTP, HTTPS
Switch Form PROFINET - Managed Switch
PROFINET
Specification V2.4, Conformance Class B
Addressing DCP
FSU (Fast-Start-Up) no
PROFINET Netload Class III
MRP yes
Shared Device no
Connections
Fieldbus 2× M12 (female), X-coded; 8× M12 (female), D-coded
Supply 2× M12 Power, 5-pole, L-coded, 2× max. 16 A

ECLASS-6.1 19170106
ECLASS-7.0 19170106
ECLASS-8.0 19170106
ECLASS-9.0 19170401
ECLASS-10.1 19170401
ECLASS-11.1 19170401
ECLASS-12.0 19170401
EAN 4048879862578
Förpackningsenhet 1
Kundens tullnummer 85176200


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Approval: UL Listed CA 58853_E201820-NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 58853_E201820-NRAQ_ul_z_a.pdf
  • Ladda ner Certificate: ProfiNet  58853_Z13402-14-06-2025-v2.4_pn_z_b.pdf
  • Ladda ner Configuration Files: GSDML 58841_XELITY_PN_KF0_x_11.zip
  • Ladda ner Construction files: DXF 58852_dxf_x_a.zip
  • Ladda ner Construction files: P8 58853_p8_2_10.zip
  • Ladda ner Construction files: STP 58852_stp_x_a.zip
  • Ladda ner Document: Installation guide 58852_ina_x_10.zip
  • Ladda ner Document: Product data 58853_pd_x_12.zip
  • Ladda ner Document: User manual 58841_hdb_x_13.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA 58853_07-02.21_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 58853_07-02.21_ce_z_a.pdf
  • Ladda ner Information: MTTF Report 58853_SN29500(40°C)-Berechnung_mttf_p_a.pdf
