Xelity PROFINET Managed Switch 10x 10/100/1000BT IP67 M12L 4P

Tillgänglig

10 Port GE without PN
M12 Power, 4-pole, L-coded
Supply PIN 1/3
Connection cables are in the online shop under "Connection Technology".

Technical Data

Operating voltage	24 V DC (9...30 V DC)
Transfer rate	10/100/1000 Mbit/s full duplex
Operating modes	Autocrossing Autonegotiation

General data

Mounting method	2-hole screw mounting
Temperature range	-25...+45 °C
Transport temperature range	-40...+85 °C
Housing	Metal
Protection	IP67

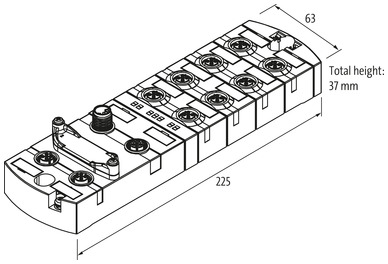

Dimensions H×W×D	224,5×63×37,4 mm

Connections

Fieldbus	10× M12 (female), X-coded
Supply	2× M12 Power, 4-pole, L-coded, 2× max. 16 A

Switch Management

Protocols	DHCP, SNMP (v1, v2c, v3), RSTP, STP, LLDP, NTP, RMON, SSH (CLI) Syslog
NAT	yes
Port Mirroring	yes
VLAN (QoS) IEEE 802.p	yes
Alarm contact	no
Remote maintenance	Open VPN
Webserver	HTTP, HTTPS
Switch Form	Managed Switch

Product article number of manufacturer	58844

Diagnostic

Communication status	via LED, LLDP
Monitoring - no voltage	yes

Uppgifter angående artikel:

Ladda ner Datablad
Ladda ner Approval: UL Listed CA 58844_E201820-NRAQ7_ulc_z_a.pdf
Ladda ner Approval: UL Listed US 58844_E201820-NRAQ_ul_z_a.pdf
Ladda ner Construction files: DXF 58844_dxf_x_a.zip
Ladda ner Construction files: P8 58844_p8_2_10.zip
Ladda ner Construction files: STP 58844_stp_x_a.zip
Ladda ner Document: Installation guide 58844_ina_x_10.zip
Ladda ner Document: Product data 58844_pd_x_12.zip
Ladda ner Document: User manual 58840_hdb_x_13.zip
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 07-11-20_(10) RoHS REACh exception 6c 7a 7cI_DoC_z_a.pdf
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
Ladda ner Information: Certificate of conformity UKCA 58844_08-02.21_uk_z_a.pdf
Ladda ner Information: EU declaration of conformity 58844_08-02.21_ce_z_a.pdf
Ladda ner Information: MTTF Report 58844_SN29500(40°C)-Berechnung_mttf_p_a.pdf
