TREE M-5TX IP67 Lite managed Switch 5 Ports  58183
Produkten kan skilja sig från bild

TREE M-5TX IP67 Lite managed Switch 5 Ports

5x10/100BT IP67
Art.Nr.: 58183
Vikt: 0.26 kg
Tillverknings land:  DE
Slut på lager - Kontakta oss för leveransdatum
 Produktjämförelse
Listpris per styck:

Beskrivning

5 port managed switch

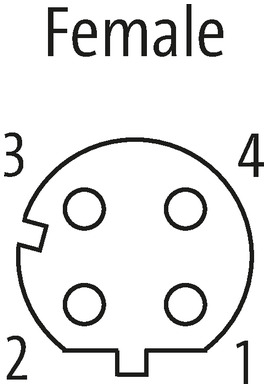

5× M12 (female), D-coded
Supply PIN 1/3
Connection cables are in the online shop under "Connection Technology".
Certificate
Certificate
Certificate

Technical Data
Operating voltage 9.5...31.5 V
Transfer rate 10/100 Mbit/s full duplex
Over voltage protection yes
Current consumption 130 mA, +/- 25 %
Operating modes Autocrossing Autonegotiation
Invers-polarity protection yes
General data
Mounting method 3 hole screw mounting
Temperature range 0...+60 °C (storage temperature -40...+85 °C)
Housing Black plastic
Protection IP67
Dimensions H×W×D 105×60×40 mm
Connections
Fieldbus 5× M12 (female), D-coded
Supply 1× M12 (male), A-coded
Switch Management
Protocols DHCP, SNMP (v1, v2c, v3), RSTP, STP, LLDP, NTP, RMON, SSH (CLI)
Port Mirroring yes
VLAN (QoS) IEEE 802.p yes
Alarm contact no
Remote maintenance Open VPN
Webserver HTTP, HTTPS
Switch Form Lite - Managed Switch
Product article number of manufacturer 58183
Diagnostic
Communication status via LED, LLDP
Monitoring - no voltage yes

ECLASS-6.0 19170106
ECLASS-6.1 19170106
ECLASS-7.0 19170106
ECLASS-8.0 19170106
ECLASS-9.0 19170401
ECLASS-10.1 19170401
ECLASS-11.1 19170401
ECLASS-12.0 19170401
ETIM-5.0 EC000734
EAN 4048879718301
Förpackningsenhet 1
Kundens tullnummer 85176200


Uppgifter angående artikel:
  • Ladda ner Datablad
  • Ladda ner Approval: UL Listed CA 58183_E201820-NRAQ7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 58183_E201820-NRAQ_ul_z_a.pdf
  • Ladda ner Construction files: DXF 58180_dxf_x_a.zip
  • Ladda ner Construction files: P8 58183_p8_2_60.zip
  • Ladda ner Construction files: STP 58180_stp_x_a.zip
  • Ladda ner Document: Installation guide 58183_ina_x_11.zip
  • Ladda ner Document: User manual 58183_hdb_x_12.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA 58183_11-08.17_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 58183_11-08-17_ce_z_a.pdf
  • Ladda ner Information: MTTF Report 58183_SN29500(40°C)-Berechnung_mttf_p_a.pdf
