RM 14/24 VAC/DC KL.BZ.N.EN OUTPUT RELAY

IN: 24 VAC/DC - OUT: 250 VAC/DC / 2 A

Tillgänglig

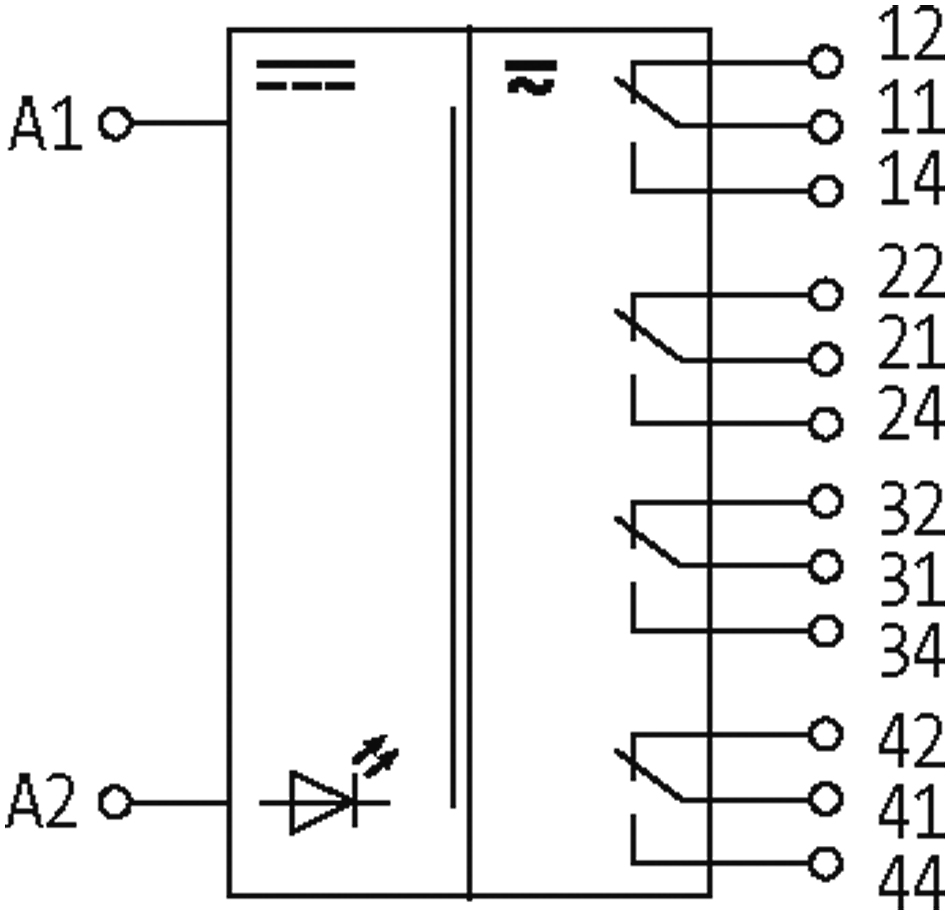

1 relay; 4 NO/NC contacts
2 A
24 V DC
Screw terminals

Input

Connection voltage - current	24 V AC/DC (20.4...26.4 V AC/DC) - 20 mA
LED display	LED (red)

Output

Min. load current	0.1 mA
Contact material	Ag Au
Energize/release/contact bounce time	10/20/2 ms
Switching voltage	max. 250 V AC/DC
Switching frequency	max. 0.1 Hz (with load)
Power rating (voltage dependent)	max. 125 VA/60 W
Switching current per output	max. 2 A

General data

Mounting method	DIN-rail mountable TH35 or G32 (EN 60715)
Temperature range	-20...+50 °C
Test isolation voltage	1.5 kV
Mech./ elect. life	50 000 000 switching cycles/load dependent
Dimensions H×W×D	75×22.5×102 mm

Utilization category
