MEN POWER SUPPLY 1/2-PHASE, SMOOTHED  85353
Produkten kan skilja sig från bild

MEN POWER SUPPLY 1/2-PHASE, SMOOTHED

IN: 230/400+/-15VAC OUT: :24V/15ADC
Art.Nr.: 85353
Vikt: 9.1 kg
Tillverknings land:  CZ
Slut på lager - Kontakta oss för leveransdatum
 Produktjämförelse
Listpris per styck:

Beskrivning

Current: 15 A
Output rating: 360 W
This power supply units meet the (EN 61000-3-2) standard for harmonic current.
Certificates as JSON - filtered
Certificates as JSON - filtered

General data
Standards EN 61558-2-6, EN 62041 category I, EN 55011 B, EN 61000-3-2
Mounting method Key-hole mounting
Temperature range -20...+60 °C, no condensation
Fixing centers a×b×c 126×104×6.5 mm
Dimensions H×W×D 138.5×135×181.5 mm
Output
Output voltage 24 V DC (SELV)
Output current (Ta 60/40 °C) max. 15 A (230 V AC); 18 A (400 V AC)

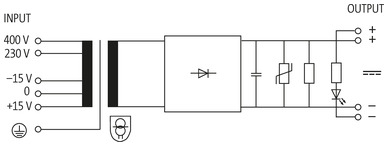

Output suppression LED, VDR and smoothing capacitor
Ripple max. 5% eff/rms
Input
Input voltage 230/400 ±15 V AC
Input fuse (external) 4 AT (230 V AC); 2.5 AT (400 V AC)
Input current 2.8 A (230 V AC); 1.65 A (400 V AC)
Frequency 50...60 Hz
Article No. 85353

EAN 4048879080040
eClass 27049002
Förpackningsenhet 1
Kundens tullnummer 85044090
