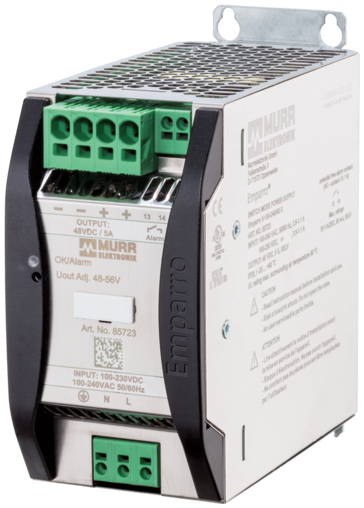

Emparro 5-100-240/48 S

Screw mounting
Art.Nr.: 85723
Alternativ produkt:    85438
Vikt: 0.855 kg
Tillverknings land:  CZ
Slut på lager - Kontakta oss för leveransdatum
 Produktjämförelse
Listpris per styck:

Beskrivning

INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 48...56 V DC
Current: 5 A
Approvals
Approvals

General data
Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
Mounting method 4 hole screw mounting
Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
Relative humidity 5...95%, no condensation
Protection IP20
Efficiency 93.7% (110 V AC); 95.1% (230 V AC)
Connection Push-In spring clamp terminals
Dimensions H×W×D 123×65×138 mm
Output
Output voltage 48 V DC (SELV), ±1%; 48...56 V adjustable
Power Boost Iout N × 150% (min. 4 s)
LED display LED (green): OK; LED (red): overload, overheating or short-circuit
Output current 5 A
Mains failure bridging time min. 30 ms (100 V AC); 5 A (48 V DC)
Ripple max. 50 mV eff/rms
Spikes max. 200 mV ss/pp
Unit protection short-circuit and overload protected
Parallel usage/serial usage max. 5 units/max. 2 units
Input
Input voltage 85...265 V AC/90...250 V DC
Input current 2.6 A (100 V AC); 1.1 A (240 V AC)
Inrush current after 1 ms max. 5.5 A (230 V AC)
Power factor 0.95 (230 V AC)
Frequency 50...60 Hz
Input fuse (internal) 6.3 A (T)
Article No. 85723

EAN 4048879670333
eClass 27049002
Förpackningsenhet 1
Kundens tullnummer 85044090


Uppgifter angående artikel:
  • Ladda ner Datablad
  • Ladda ner Approval: EAC 85723_ЕАЭС RU С-DE.АБ53.В.03597-2027.02.14_eac_z_b.pdf
  • Ladda ner Approval: UL Listed CA 85723_E200364-NMTR7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 85723_E200364-NMTR_ul_z_a.pdf
  • Ladda ner Approval: UL Registered CA 85723_E181433-QQGQ8_urc_z_b.pdf
  • Ladda ner Approval: UL Registered US 85723_E181433-QQGQ2_ur_z_b.pdf
  • Ladda ner Construction files: P8 85723_p8_2_50.zip
  • Ladda ner Document: Installation guide 85723_ina_2_12.pdf
  • Ladda ner Document: Product data 85723_pd_x_11.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity UKCA 85723_11-10.20_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 85723_11-10.20_ce_z_b.pdf
  • Ladda ner Information: MTBF Report 85723_SN29500(40°C)-BerechnungV1.4_mtbf_p_a.pdf
