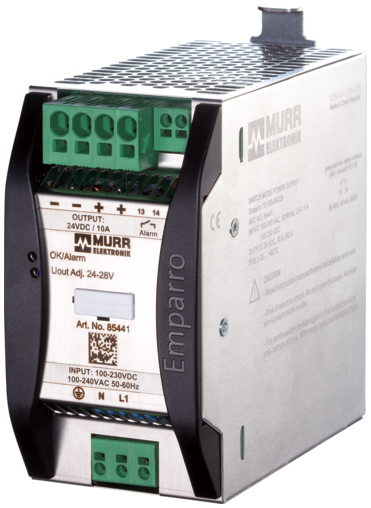

EMPARRO POWER SUPPLY 1-PHASE,

IN: 100-240VAC OUT: 24-28VDC/10A
Art.Nr.: 85441
Vikt: 0.85 kg
Tillverknings land:  CZ
Slut på lager - Kontakta oss för leveransdatum
 Produktjämförelse
Listpris per styck:

Beskrivning

INPUT: 85...265 V AC/90...250 V DC
OUTPUT: 24...28 V DC
Current: 10 A
Certificates as JSON - filtered
Certificates as JSON - filtered
Certificates as JSON - filtered

General data
Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
Relative humidity 5...95%, no condensation
Protection IP20
Efficiency 92.8% (110 V AC); 94.3% (230 V AC)
Connection Push-In spring clamp terminals
Dimensions H×W×D 123×65×138 mm
Output
Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
Power Boost Iout N × 150% (min. 4 s)
LED display LED (green): OK; LED (red): overload, overheating or short-circuit
Output current 10 A
Mains failure bridging time min. 30 ms (100 V AC); 10 A (24 V DC)
Ripple max. 50 mV eff/rms
Spikes max. 200 mV ss/pp
Unit protection short-circuit and overload protected
Parallel usage/serial usage max. 5 units/max. 2 units
Input
Input voltage 85...265 V AC/90...250 V DC
Input current 2.6 A (100 V AC); 1.1 A (240 V AC)
Inrush current after 1 ms max. 13 A
Power factor 0.95 (230 V AC)
Frequency 50...60 Hz
Input fuse (internal) 6.3 A (T)
Article No. 85441

EAN 4048879381499
eClass 27049002
Förpackningsenhet 1
Kundens tullnummer 85044090


Uppgifter angående artikel:
  • Ladda ner Datablad
  • Ladda ner Approval: EAC 85441_ЕАЭС RU С-DE.АБ53.В.03597-2027.02.14_eac_z_b.pdf
  • Ladda ner Approval: UL Listed CA 85441_E200364-NMTR7_ulc_z_a.pdf
  • Ladda ner Approval: UL Listed US 85441_E200364-NMTR_ul_z_b.pdf
  • Ladda ner Approval: UL Registered CA 85441_E181433-QQGQ8_urc_z_b.pdf
  • Ladda ner Approval: UL Registered US 85441_E181433-QQGQ2_ur_z_b.pdf
  • Ladda ner Certificate: CB  85441_DK-34194-UL_cb_z_a.pdf
  • Ladda ner Certificate: GL  85441_TAA00002EJ-2024.07.17_DNVGL_gl_z_b.pdf
  • Ladda ner Construction files: DXF 85441_dxf_x_a.zip
  • Ladda ner Construction files: P8 85441_p8_2_50.zip
  • Ladda ner Construction files: STP 85441_stp_x_a.zip
  • Ladda ner Document: Installation guide 85441_ina_4_26.pdf
  • Ladda ner Document: Product data 85441_pd_x_12.zip
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity UKCA 85441_08-10.20_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 85441_05-08.22_ce_z_e.pdf
  • Ladda ner Information: MTBF Report 85441_SN29500(40°C)-BerechnungV1.4_mtbf_p_d.pdf
  • Ladda ner Information: MTTF Report 85441_SN29500(40°C)-BerechnungV1.4_mttf_p_b.pdf
