Zoom

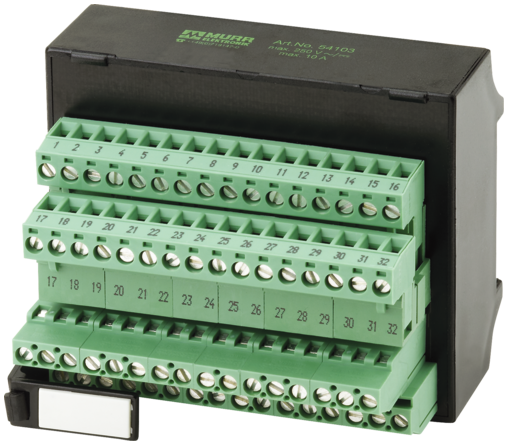

Produkten kan skilja sig från bild
LUGS 32 FOR SIGNAL TRANSFER
250V / 8 A
| Art.Nr.: | 54103 |
| Alternativ produkt: | 6654102 |
| Vikt: | 0.216 kg |
| Tillverknings land: | CZ |
Slut på lager - Kontakta oss för leveransdatum
Beskrivning
32-pole
Screw plug-in terminals
Screw plug-in terminals
Tekniska data
Technical Data
| Operating voltage | 250 V AC |
|---|---|
| Material group | EN 60664-1 over voltage, category I |
| Operating current per bit | 8 A |
General data
| Mounting method | DIN-rail mountable (EN 60715) |
|---|---|
| Temperature range | -20...+60 °C |
| Connection | Screw plug-in terminal: max. 4 mm², single wire |
| Dimensions H×W×D | 75×90×66 mm |
Kommersiella uppgifter
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-6.1 | 27260708 |
| ECLASS-7.0 | 27141152 |
| ECLASS-8.0 | 27141152 |
| ECLASS-9.0 | 27141152 |
| ECLASS-10.1 | 27141152 |
| ECLASS-11.1 | 27141152 |
| ECLASS-12.0 | 27141152 |
| ETIM-5.0 | EC001283 |
| EAN | 4048879026260 |
| Förpackningsenhet | 1 |
| Kundens tullnummer | 85369010 |
Tillbehör
---- Märkningstillbehör ----
---- Skruvmejsel ----
