UFL 20 L PLUG  FOR SIGNAL TRANSFER  54013
Produkten kan skilja sig från bild

UFL 20 L PLUG FOR SIGNAL TRANSFER

24 VDC / 1 A - male with LED
Art.Nr.: 54013
Vikt: 0.122 kg
Tillverknings land:  CZ
Slut på lager - Kontakta oss för leveransdatum
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

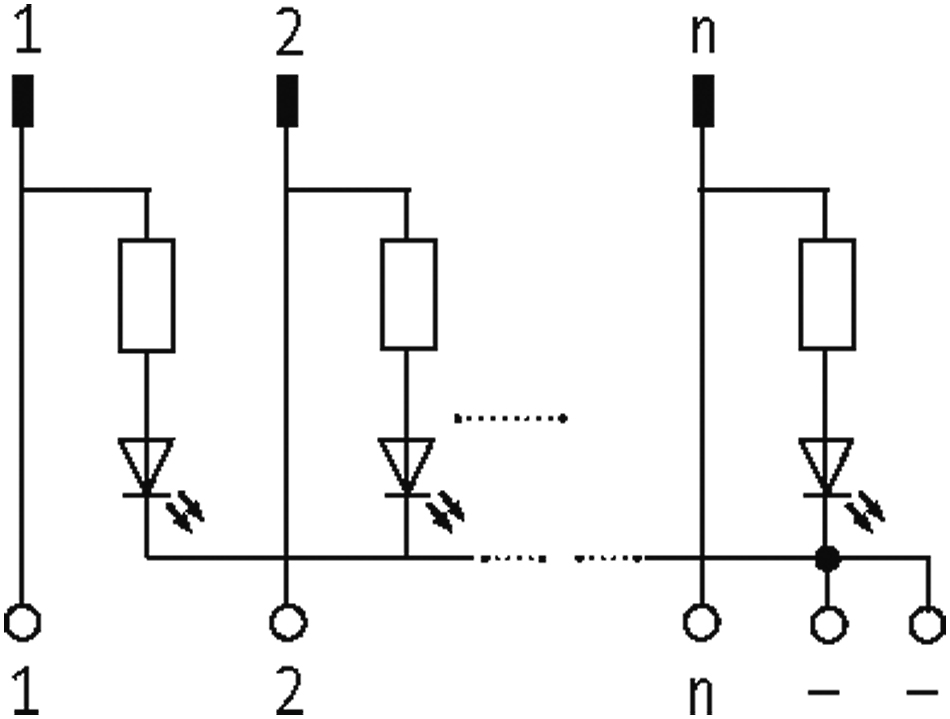

Ribbon cable connector + LED
20-pole
Via the combined fixing mechanism, connectors with or without strain relief can be connected.
Certificate
Certificate

Technical Data
Operating voltage 24 V AC
Material group EN 60664-1 over voltage, category II
LED display LED (red) Ø 3 mm per pole, acc. to potential -
Plug connector for plugs with or without strain relief (DIN 41651); for plugs with strain relief, it may be necessary to remove the bottom hook
Operating current per bit max. 1 A
General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range -20...+70 °C
Dimensions H×W×D 63×75×48 mm

ECLASS-6.0 27141120
ECLASS-6.1 27141120
ECLASS-7.0 27141120
ECLASS-8.0 27141120
ECLASS-9.0 27141120
ECLASS-10.1 27141120
ECLASS-11.1 27141120
ECLASS-12.0 27141120
ETIM-5.0 EC001283
EAN 4048879026604
Förpackningsenhet 1
Kundens tullnummer 85366990


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity UKCA 54013_06-05.18_uk_z_a.pdf
  • Ladda ner Information: EU declaration of conformity 54013_06-05.18_ce_z_a.pdf
