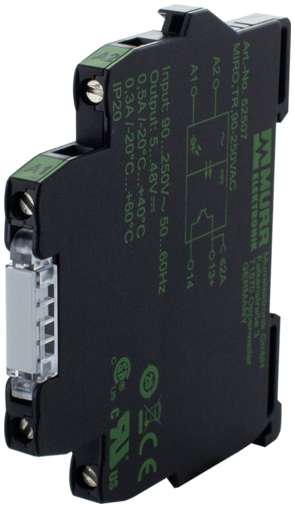

MIRO TR 90-250VAC OPTO-COUPLER MODULE

IN: 250 VAC - OUT: 48 VDC / 0,5 A

Tillgänglig

Transistor 0.5 A
230 V AC
Screw terminals

Input

Output

Leakage current (output is open)	max. 0.3 mA
Switching time ON/OFF	55/15 ms
Saturation voltage (across output)	max. 1.2 V DC
Switching voltage	5...48 V DC
Switching frequency	max. 500/30 Hz (resist./ind.)
Switching current per output	0.1 mA...0.5 A

General data

Mounting method	DIN-rail mountable (EN 60715)
Temperature range	-20...+60 °C
Test isolation voltage	3.75 kV
Housing	Black plastic, flame retardant
Dimensions H×W×D	78×6.2×70 mm

Uppgifter angående artikel:

Ladda ner Produkt-PDF
Ladda ner Approval: CSA CA 52507_080128-0-000_C3211-07_csa_z_b.pdf
Ladda ner Approval: CSA US 52507_080128-0-000_C3211-07_csau_z_b.pdf
Ladda ner Approval: UL Registered CA 52507_E140415-NKCR8_urc_z_d.pdf
Ladda ner Approval: UL Registered US 52507_E140415-NKCR2_ur_z_d.pdf
Ladda ner Construction files: DXF 52002_dxf_x_a.zip
Ladda ner Construction files: P8 52507_p8_2_60.zip
Ladda ner Construction files: STP 52002_stp_x_a.zip
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
Ladda ner Information: Certificate of conformity UKCA 52507_1528-04.16_uk_z_a.pdf
Ladda ner Information: EU declaration of conformity 52507_1528-04.16_ce_z_c.pdf
Ladda ner Information: MTTF Report 52507_SN29500(40°C)-Berechnung_mttf_p_a.pdf
