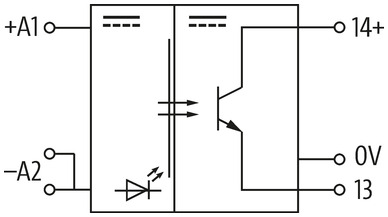

AMIS/10-44/2 OPTO-COUPLER MODULE

Name: AMIS/10-44/2 OPTO-COUPLER MODULE
Brand: Murrelektronik
SKU: 50600

IN: 53 VDC - OUT: 35 VDC / 2 A

Slut på lager - Kontakta oss för leveransdatum

Transistor 1.2 A
24 V DC

General data

Mounting method	DIN-rail mountable TH35 or G32 (EN 60715)
Temperature range	-20...+60 °C
Test isolation voltage	3.75 kV
Housing	Black plastic, flame retardant
Dimensions H×W×D	65×17×74 mm

Output

Leakage current (output is open)	max. 0.3 mA
Switching voltage	4.5...53 V DC
Switching frequency	max. 500 Hz (resist.) at max. 0.2 A/max. 30 Hz (ind.)

Input

Product article number of manufacturer	50600

Uppgifter angående artikel:

Ladda ner Datablad
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 07-11.20_(10) RoHS&REACh exception 6c&7a&7cI_DoC_z_a.pdf
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 17-12.20_(3) China RoHS 2 25EEP_DoC_z_b.pdf
Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
Ladda ner Information: Certificate of conformity UKCA 50600_10-08.21_uk_z_a.pdf
Ladda ner Information: EU declaration of conformity 50600_10-08.21_ce_z_d.pdf
Ladda ner Information: MTTF Report 50600_SN29500(40°C)-BerechnungV1.4_mttf_p_d.pdf
