Produkten kan skilja sig från bild
MPOT POTENTIOMETER MODULE
10K-Ohm/3600° /10 turn
| Art.Nr.: | 67512 |
| Vikt: | 0.078 kg |
| Tillverknings land: | CZ |
Slut på lager - Kontakta oss för leveransdatum
Beskrivning
10-turn potentiometer
10 kΩ
The 10-turn potentiometer has a decimal scale and locking lever
10 kΩ
The 10-turn potentiometer has a decimal scale and locking lever
Tekniska data
Technical Data
| Resistance tolerance | ±5% |
|---|---|
| Linearity | ±0.25% |
| Power (potentiometer) | 1.4 W (2 W/40 °C) |
| Power (resistor) | 0.25 W |
General data
| Mounting method | DIN-rail mountable (EN 60715) |
|---|---|
| Temperature range | 0...+60 °C |

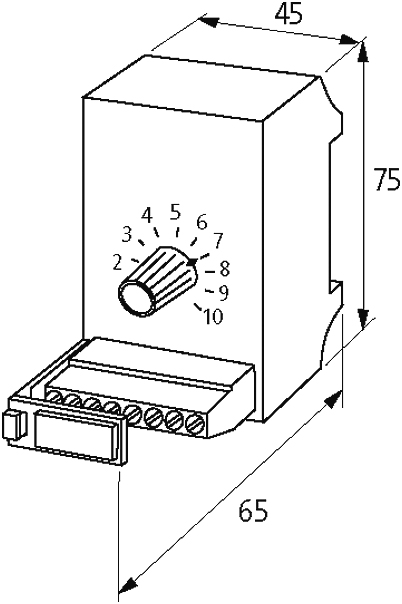

| Dimensions H×W×D | 75×45×65 mm |
Description
| Functional description | The potentiometer modules are fitted with standard values. They are available as 270° potentiometer and as 10-turn potentiometer with fine adjustment. They can be operated with 10 V DC or 24 V DC. A resistor reduces the voltage so that a 24 V DC voltage c |
|---|
| Product article number of manufacturer | 67512 |
|---|
Kommersiella uppgifter
| ECLASS-6.0 | 27371227 |
|---|---|
| ECLASS-6.1 | 27371227 |
| ECLASS-7.0 | 27371227 |
| ECLASS-8.0 | 27371227 |
| ECLASS-9.0 | 27371227 |
| ECLASS-10.1 | 27371227 |
| ECLASS-11.1 | 27371227 |
| ECLASS-12.0 | 27371227 |
| ETIM-5.0 | EC001027 |
| EAN | 4048879041645 |
| Förpackningsenhet | 1 |
| Kundens tullnummer | 85334010 |
