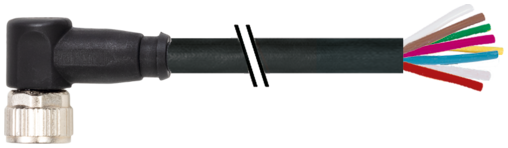

M8 female 90° with cable
PUR 8x0.14 1,5m
| Art.Nr.: | 7000-08971-6960150 |
| Alternativ produkt: | 7000-08971-6960300 |
| Vikt: | 0.033 kg |
| Tillverknings land: | CZ |
Tillgänglig
Beskrivning

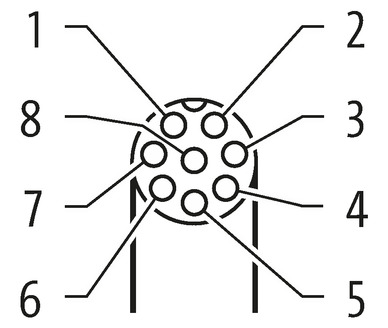

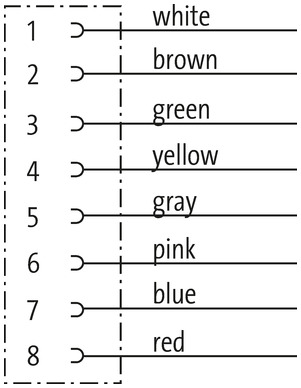

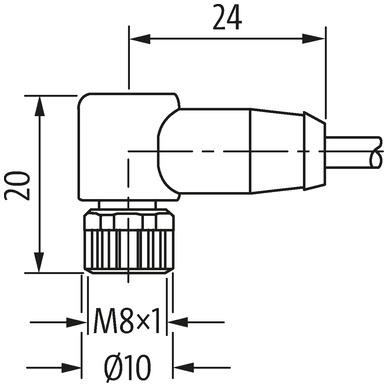

Female 90°
M8, 8-pole
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Tekniska data
| Cable length | 1,5 m |
|---|
Side 1
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| Material contact | Copper alloy |
| Material | TPU |
| No. of poles | 8 |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 1,5 A |
Diagnostics
| Status indication LED | no |
|---|
Installation | Connection
| Mounting set | M8 x 1 |
|---|---|
| Mating cycles min. | 100 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3/2 |
| Insulation resistance min. | 100 MΩ |
Mechanical data | Material data
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Material gasket | FPM |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 80 °C |
| Additional condition temperature range | depending on cable quality |
Kabeldata
Cable
| Cable identification | 696 |
|---|---|
| Material wire | Cu wire, bare |
| Resistor (core) | max. 78 Ω/km (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 18× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 8× 0.14 mm² |
| AWG | similar to AWG 14 |
| Material wire isolation | PP |
| Wire-Ø incl. isolation | 1.07 mm ±5% |
| Stranding combination | 8 wires twisted around central filler |
| Shield | no |
| Material jacket | PUR |
| Outer-Ø (jacket) | 5.5 mm ±5% |
| Color jacket | black |
| Jacket Color | black |
| Nominal voltage | 300 V |
| Test voltage | 3000 V AC |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -15...+80 °C |
| Bend radius (fixed) | 6× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel speed (C-track) | max. 5 m/s |
| Acceleration (C-track) | max. 10 m/s² |
Kommersiella uppgifter
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060311 |
| ECLASS-10.1 | 27060311 |
| ECLASS-11.1 | 27060311 |
| ECLASS-12.0 | 27060311 |
| ETIM-5.0 | EC001855 |
| Förpackningsenhet | 1 |
| GTIN | 4048879745178 |
| Kundens tullnummer | 85444290 |
