MQ15 female 0° with cable shielded 600V AC type 3
PUR 4x1.5 or UL/CSA+drag ch. 10m
| Art.Nr.: | 7000-P8021-P121000 |
| Vikt: | 1.6 kg |
| Tillverknings land: | DE |
Tillgänglig
Beskrivning
Female straight

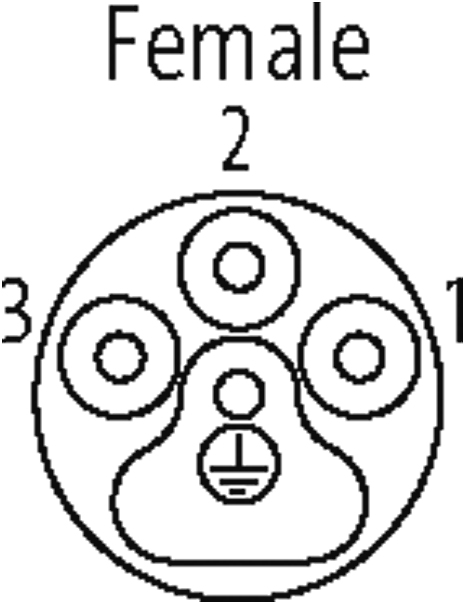

MQ15, 4-pole
shielded
without cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Tekniska data
Form
| Form | P8021 |
|---|
Technical Data
| Operating voltage | max. 600 V AC |
|---|---|
| Rated surge voltage | 4.0 kV |
| Operating current per contact | max. 13 A |
| No. of poles | 4 |
| Material group | IEC 60664-1, category I |
| Mating cycles | ≥ 500 |
| LED display | no |
| Locking of ports | Quick connection, 1/4 turn |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material | Flame retardant plastic acc. to (UL 94) |
| Configuration | fully used |
General data
| Mounting method | inserted, tightened |
|---|---|
| Material contact | Copper alloy |
| Material contact surface | Ag |
| Pollution Degree | 3 |
| Stripping length (jacket) | 30 mm |
| Temperature range | -25...+80 °C, depending on cable quality |
| Material contact carrier | PA |
Cables
| No./diameter of wires | 4× 1.5 mm² |
|---|---|
| Wire isolation | TPM (bk num, gnye) |
| C-track properties | 5 Mio. |
| Outer Ø | 8.0 mm ±5% |
| Cable identification | P12 |
| Cable number | P12 |
| Cable weight [g/m] | 128,7 g |
| Material wire | Cu wire, bare |
| Diameter (core) | 4× 1.5 mm² |
| Color/numbering of wires | bk numbered, gnye longitudinally striped |
| Shield | yes |
| Shield (Type) | Copper braid |
| Material jacket | PUR |
| Outer-Ø (jacket) | 8.0 mm ±5% |
| Color jacket | orange |
| Jacket Color | orange |
| thermal resistance | flame retardant |
| Nominal voltage | 1000 V AC |
| Test voltage | 4000 V |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Temperature range (mobile) | -20...+60 °C |
| Bend radius (fixed) | 10× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Bend radius (moving) | 10× outer Ø |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Torsion stress | ±15°/m |
| Material jacket | PUR (UL) |
| Product article number of manufacturer | 7000-P8021-P121000 |
|---|---|
| Cable length | 10 m |
