M8 female recept. A-cod. front
PVC-wires 3xAWG24/7 0.2m
| Art.Nr.: | 7000-08571-9100020 |
| Vikt: | 0.012 kg |
| Tillverknings land: | DE |
Kontakta oss för leveransdatum
Beskrivning
Flange female
M8, 3-pole
Front mounting
with multi-strand wire
Tekniska data
| Cable length | 0,2 m |
|---|
Side 1
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M8 |
| Thread | M8 x 1 |
| Material | Brass |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation | Connection
| Mounting set | M8 x 1 |
|---|
Device protection | Electrical
| Protection NEMA | 3, 4, 6P |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating housing | nickel plated |
|---|---|
| Coating locking | nickel plated |
| Coating of fitting | nickel plated |
| Material gasket | FKM |
| Locking material | Brass |
| Material screw connection | Brass |
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
|---|---|
| Looking techniques | Schraubgewinde |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Conformities, approvals, certificates
| Product standard | DIN EN 61076-2-114 (M8) |
|---|---|
| UL 50E | yes |
Kabeldata
Cable
| No./diameter of wires | 3× 0.25 mm² |
|---|---|

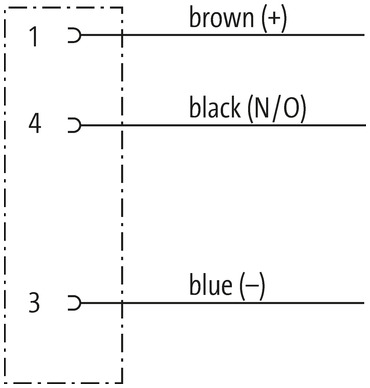

| Wire isolation | PVC (br, bl, bk) |
| Outer Ø | 1.15 mm ±5% |
| Cable number | 910 |
| Temperature range (fixed) | -40...+105 °C |
| Temperature range (mobile) | -5...+105 °C |
| Bend radius (fixed) | 5× outer Ø |
Kommersiella uppgifter
| ECLASS-6.0 | 27279220 |
|---|---|
| ECLASS-7.0 | 27440103 |
| ECLASS-8.0 | 27440103 |
| ECLASS-9.0 | 27440103 |
| ECLASS-10.1 | 27440103 |
| ECLASS-11.1 | 27440103 |
| ECLASS-12.0 | 27440103 |
| ETIM-5.0 | EC001855 |
| Förpackningsenhet | 1 |
| GTIN | 4048879621212 |
| Kundens tullnummer | 85444290 |
