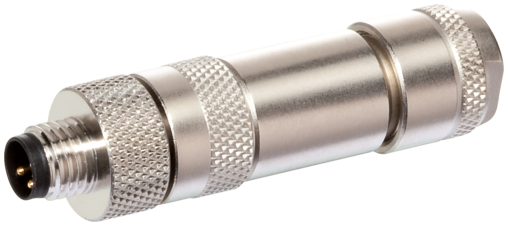

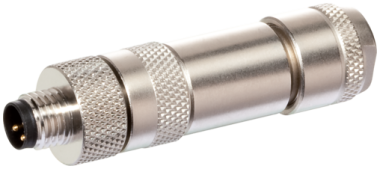

M8 male 0° A-cod. screw terminal
3-pol., 0,14 - 0.5mm², 4 - 5,5mm, shielded
| Art.Nr.: | 7000-08641-0000000 |
| Vikt: | 0.052 kg |
| Tillverknings land: | DE |
Tillgänglig
Beskrivning
Male straight

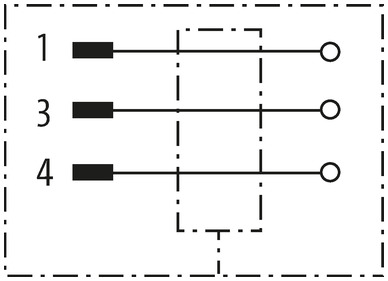

M8, 3-pole
shielded
Screw terminals
Connection cross section: 0.14...0.5 mm²
The resistance to aggressive media should be individually tested for your application. Further details on request.
M8, 3-pole
shielded
Screw terminals
Connection cross section: 0.14...0.5 mm²
The resistance to aggressive media should be individually tested for your application. Further details on request.
Tekniska data
Side 1
| Coating contact | gold plated |
|---|---|
| Family construction form | M8 |
| Material contact | Brass |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 4 A |
Installation
| Connection cross section min. | 0,14 mm² |
|---|---|
| Connection cross section max. | 0,5 mm² |
Installation | Connection
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting set | M8 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Overvoltage category (EN 60664-1) | III |
| Overvoltage category (EN 60950-1) | III |
Mechanical data | Material data
| Coating locking | nickel plated |
|---|---|
| Locking material | Brass |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|---|
| Clamping range min. | 4 mm |
| Clamping range max. | 5,5 mm |

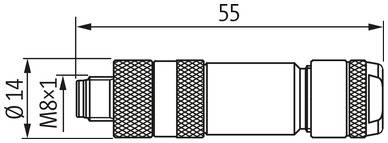

| Height | 55 mm |
| Width | 14 mm |
| Depth | 14 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
Kommersiella uppgifter
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440116 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC002635 |
| Förpackningsenhet | 1 |
| GTIN | 4048879224499 |
| Kundens tullnummer | 85366990 |
