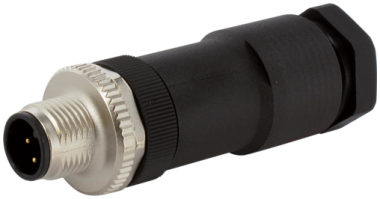

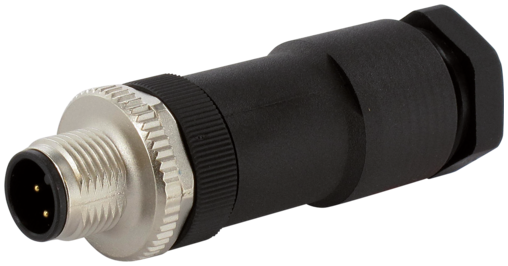

M12 male 0° A-cod. screw terminal  7000-12745-0000000
Produkten kan skilja sig från bild

M12 male 0° A-cod. screw terminal

4-pol., max. 1,5mm², 8 -10mm
Art.Nr.: 7000-12745-0000000
Alternativ produkt:    7000-12861-0000000
Vikt: 0.027 kg
Tillverknings land:  DE
Tillgänglig
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

Male straight
M12, 4-pole
Screw terminals
Sealing range (cable Ø): 8...10 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.

Side 1
Family form head 1 M12
Degree of protection (EN IEC 60529) IP67
Electrical data | Supply
Operating voltage AC max. 250 V
Operating voltage DC max. 250 V
Current operating per contact max. 8 A
Installation
Connection cross section max. 1,5 mm²
Device protection | Electrical
Protection degree additional condition inserted, screwed
Mechanical data | Mounting data
Clamping range min. 8 mm
Clamping range max. 10 mm
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 85 °C

ECLASS-6.0 27279221
ECLASS-7.0 27440104
ECLASS-8.0 27440104
ECLASS-9.0 27440102
ECLASS-10.1 27440102
ECLASS-11.1 27440102
ECLASS-12.0 27440116
ETIM-5.0 EC002635
Förpackningsenhet 1
GTIN 4048879378376
Kundens tullnummer 85366990


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Document: Installation guide 7000-12745-0000000_ina_x_01.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
