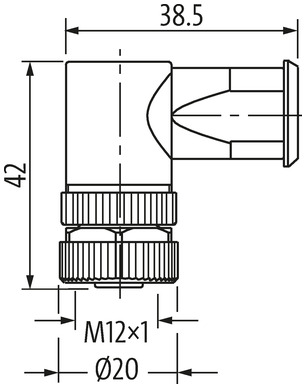

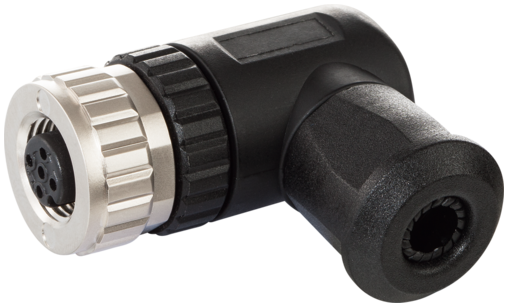

M12 female 90° A-cod. screw terminal
5-pol., 0,14 - 1,5mm², 2,5 - 8mm
| Art.Nr.: | 7000-13011-0000000 |
| Alternativ produkt: | 7000-13041-0000000 |
| Vikt: | 0.06 kg |
| Tillverknings land: | SK |
Tillgänglig
Beskrivning
Female 90°
M12, 5-pole
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
M12, 5-pole
Screw terminals
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Tekniska data
Side 1
| Family form head 1 | M12 |
|---|---|
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Operating current per contact max. (40°C) | 7,5 A |
Installation
| Connection cross section max. | 1,5 mm² |
|---|
Installation | Connection
| Tightening torque | 0,6 Nm |
|---|
Device protection | Electrical
| Protection degree additional condition | inserted, screwed |
|---|
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
|---|---|
| Clamping range min. | 2,5 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
Kommersiella uppgifter
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-7.0 | 27440104 |
| ECLASS-8.0 | 27440104 |
| ECLASS-9.0 | 27440102 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC002635 |
| Förpackningsenhet | 1 |
| GTIN | 4048879428774 |
| Kundens tullnummer | 85366990 |
