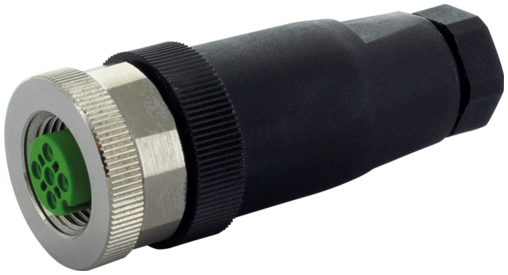

M12 female 0° A-cod. screw terminal
5-pol., max. 0,75mm² 4 - 6mm
| Art.Nr.: | 7000-12922-0000000 |
| Alternativ produkt: | 7000-12921-0000000 |
| Vikt: | 0.03 kg |
| Tillverknings land: | CN |
Tillgänglig
Beskrivning
Female straight
M12, 5-pole
Screw terminals
Sealing range (cable Ø): 4...6 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
M12, 5-pole
Screw terminals
Sealing range (cable Ø): 4...6 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Tekniska data
Side 1
| Family form head 1 | M12 |
|---|---|
| Coding head 1 | A |
| Material contact | Copper alloy |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 4 A |
Installation
| Connection cross section max. | 0,75 mm² |
|---|
Installation | Connection
| Connection | Screw terminals SK |
|---|---|
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
Device protection | Electrical
| Insulation resistance min. | 100 MΩ |
|---|---|
| Protection degree additional condition | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60950-1) | II |
Mechanical data | Material data
| Coating contact | gold plated |
|---|---|
| Material housing | PBT |
| Locking material | Copper alloy |
Mechanical data | Mounting data
| Clamping range min. | 4 mm |
|---|---|
| Clamping range max. | 6 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
Kommersiella uppgifter
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440116 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC001855 |
| Förpackningsenhet | 1 |
| GTIN | 4065909040867 |
| Kundens tullnummer | 85366990 |
