M12 female 0° A-cod. IDC 7000-12593-0000000
Produkten kan skilja sig från bild

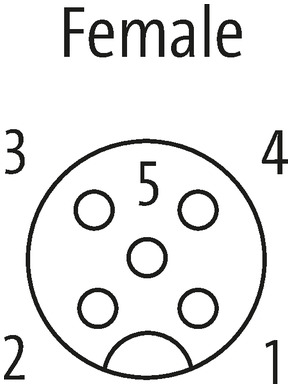

M12 female 0° A-cod. IDC

5-pol., 0,34 - 0,5mm², 4,7 - 6mm
Art.Nr.: 7000-12593-0000000
Alternativ produkt:    7000-12922-0000000
Vikt: 0.028 kg
Tillverknings land:  DE
Tillgänglig
Find similar Product
Ställ en fråga
 Rekommendera produkten
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

Female straight

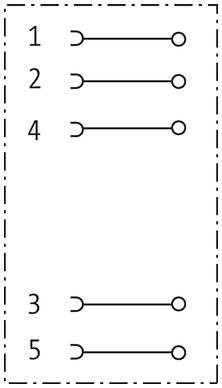

M12, 5-pole
IDC terminals
Connection cross section: 0.34...0.5 mm²
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate

Side 1
Family form head 1 M12
Degree of protection (EN IEC 60529) IP67
Electrical data | Supply
Operating voltage AC max. 50 V
Operating voltage DC max. 50 V
Current operating per contact max. 4 A
Installation
Connection cross section min. 0,34 mm²
Connection cross section max. 0,5 mm²
Single wire diameter min. 0,1 mm
Installation | Connection
Wire insulation diameter min. 1,2 mm
Wire insulation diameter max. 2 mm
Device protection | Electrical
Protection degree additional condition inserted, screwed
Mechanical data | Mounting data
Clamping range min. 4,7 mm
Clamping range max. 6 mm
Height 49 mm
Width 20,5 mm
Depth 20,5 mm
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 85 °C

ECLASS-6.0 27279221
ECLASS-7.0 27440104
ECLASS-8.0 27440104
ECLASS-9.0 27440102
ECLASS-10.1 27440102
ECLASS-11.1 27440102
ECLASS-12.0 27440116
ETIM-5.0 EC002635
Förpackningsenhet 1
GTIN 4048879306003
Kundens tullnummer 85366990


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Approval: UL Registered CA 7000-12593-0000000_E224242-ECBT8_urc_z_b.pdf
  • Ladda ner Approval: UL Registered US 7000-12593-0000000_E224242-ECBT2_ur_z_b.pdf
  • Ladda ner Construction files: STP 7000-12593-0000000_stp_x_a.zip
  • Ladda ner Document: Installation guide 7000-12593-0000000_ina_x_01.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity UKCA con_01-10.21_uk_z_b.pdf
  • Ladda ner Information: EU declaration of conformity con_01-10.21_ce_z_b.pdf
