RJ45 male 0° / RJ45 male 0° shielded
PUR 4x2xAWG24 shielded gn UL/CSA 5m
| Art.Nr.: | 7000-74331-8260500 |
| Vikt: | 0.607 kg |
| Tillverknings land: | HU |
Tillgänglig
Beskrivning
Ethernet

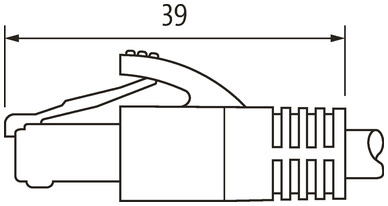

Male straight – male straight

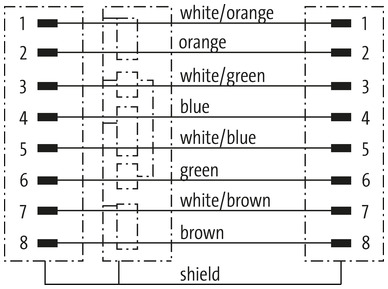

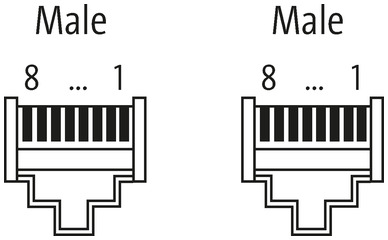

RJ45 – RJ45, 8-pole
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Tekniska data
| Cable length | 5 m |
|---|
Side 1
| Mounting method | inserted |
|---|---|
| Family form head 1 | RJ45 |
| Number of poles head 1 | 8 |
Side 2
| Mounting method | inserted |
|---|---|
| Family form head 2 | RJ45 |
| Number of poles head 2 | 8 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 1,5 A |
Diagnostics
| Status indication LED | no |
|---|
Mechanical data
| Contour for corrugated hose | without |
|---|
Mechanical data | Mounting data
| Looking techniques | Snap-in connector |
|---|
Environmental characteristics | Climatic
| Operating temperature min. (dynamic) | -25 °C |
|---|---|
| Min. operating temperature (static) | -25 °C |
| Operating temperature max. (dynamic) | 55 °C |
| Max. operating temperature (fixed) | 55 °C |
Kabeldata
Cable
| Cable identification | 826 |
|---|---|
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Material wire | Cu wire, bare |
| Resistor (core) | max. 94.2 Ω/km (20 °C) |
| Construction (core) | 7× 0.203 mm |
| Diameter (core) | 4× 2× AWG24/7 |
| AWG | similar to AWG 24/7 |
| Material wire isolation | PE |
| Wire-Ø incl. isolation | 1.05 mm ±5% |
| Color/numbering of wires | PE (whbl, bl, whor, or, whgn, gn, whbr, br) |
| Shield | yes |
| Shield (Type) | Copper braid |
| Optical shield cover | min. 80% |
| Material jacket | PUR |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Outer-Ø (jacket) | 8.9 mm ±5% |
| Color jacket | green |
| thermal resistance | compliant UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2 |
| Nominal voltage | 300 V |
| Test voltage | 2000 V AC (test duration 1 min) |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 8× outer Ø |
| Bend radius (moving) | 15× outer Ø |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 4 m/s |
| Acceleration (C-track) | max. 4 m/s² |
| Torsion stress | ±180°/m |
| No. of torsion cycles | max. 1 Mio. (25 °C) |
