Adaptor M12 male / M12 female A-cod. shielded  7000-42251-0000000
Produkten kan skilja sig från bild

Adaptor M12 male / M12 female A-cod. shielded

4-pol., I-U
Art.Nr.: 7000-42251-0000000
Vikt: 0.02 kg
Tillverknings land:  DE
Tillgänglig
 Produktjämförelse
Listpris per styck:
Ladda ner Easy-Import-Export

Beskrivning

Adapter

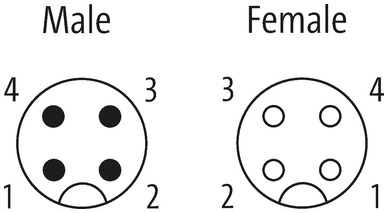

Male - female
M12 – M12, 4-pole
shielded

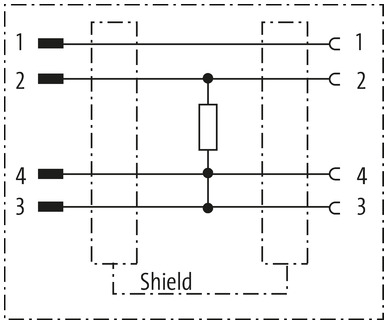

Current /voltage converter
Certificate

General product information
Application Current /voltage converter
Electrical data | Supply
Operating voltage AC max. 30 V
Operating voltage AC max. (UL-listed) 30 V
Operating voltage DC max. 30 V
Operating voltage DC max. (UL-listed) 30 V
Current operating per contact max. 4 A
Installation | Connection
Tightening torque 0,6 Nm
Mounting set M12 x 1
Device protection
Shielded yes
Device protection | Electrical
Rated insulation voltage 800 V
Rated surge voltage 0,8 kV
Degree of protection (EN IEC 60529) IP67
Protection degree additional condition inserted, screwed
Mechanical data | Material data
Coating locking Nickeled
Material housing PUR
Locking material Zinc die-casting
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Environmental characteristics | Climatic
Operating temperature min. -25 °C
Operating temperature max. 85 °C

ECLASS-6.0 27143423
ECLASS-6.1 27260702
ECLASS-7.0 27440102
ECLASS-8.0 27440102
ECLASS-9.0 27440106
ECLASS-10.1 27440102
ECLASS-11.1 27440102
ECLASS-12.0 27440106
ETIM-5.0 EC001855
Förpackningsenhet 1
GTIN 4048879143189
Kundens tullnummer 85366990


Uppgifter angående artikel:
  • Ladda ner Produkt-PDF
  • Ladda ner Certificate 7000-18001_ax_2_k.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
  • Ladda ner Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
